Registry Review and Registry Classes in .Net



Windows Registry

The Registry is a special database used to store settings and configurations for the 32 bit versions of Microsoft Windows including Windows 95, 98, ME and NT/2000. It contains information and settings for all the hardware, software, users, and preferences of the PC. In addition, it is an important information repository for COM components. Whenever a user makes changes to a Control Panel settings, or File Associations, System Policies, or installed software, the changes are reflected and stored in the Registry.



The physical files that make up the registry are stored differently depending on your version of Windows; under Windows 95 and 98, it is contained in two hidden files in your Windows directory, called USER.DAT and SYSTEM.DAT, for Windows Me there is an additional CLASSES.DAT file, while under Windows NT/2000 the files are contained separately in the %SystemRoot%\System32\Config directory. You cannot edit these files directly, you must use a tool commonly known as a "Registry Editor" (regedit.exe or regedt32.exe) to make any changes.



The Structure of the Registry

The Registry has a hierarchal structure, although it looks complicated the structure is similar to the directory structure on your hard disk, with Regedit being similar to Windows Explorer.

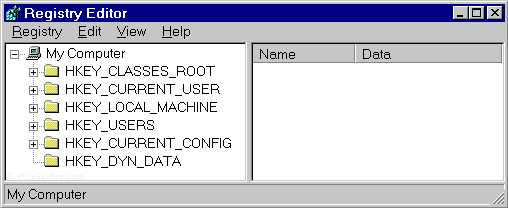

Registry Structure

Each main branch (denoted by a folder icon in the Registry Editor, see left) is called a Hive, and Hives contains Keys. Each key can contain other keys (sometimes referred to as sub-keys), as well as Values. The values contain the actual information stored in the Registry. There are three types of values; String, Binary, and DWORD - the use of these depends upon the context.

There are seven main hives in the Registry (although only five are visible through regedit), each containing a specific portion of the information stored in the Registry. They are as follows:

The following two hives contain dynamic data which changes frequently.

Each registry value is stored as one of five main data types:

Other data types not available through the standard registry editors include:

Editing the Registry

The Registry Editor (REGEDIT.EXE) is included with most version of Windows (although you won't find it on the Start Menu) it enables you to view, search and edit the data within the Registry. There are several methods for starting the Registry Editor, the simplest is to click on the Start button, then select Run, and in the Open box type "regedit", and if the Registry Editor is installed it should now open and look like the image below.



Picture of regedit.exe



An alternative Registry Editor (REGEDT32.EXE) is available for use with Windows NT/2000, it includes some additional features not found in the standard version, including; the ability to view and modify security permissions, and being able to create and modify the extended string values REG_EXPAND_SZ & REG_MULTI_SZ.





Create a Shortcut to Regedit

This can be done by simply right-clicking on a blank area of your desktop, selecting New, then Shortcut, then in the Command line box enter "regedit.exe" and click Next, enter a friendly name (e.g. 'Registry Editor') then click Finish and now you can double click on the new icon to launch the Registry Editor.





Using Regedit to Examine Attributes of a Software Installed on Your Machine

            As an example, one of the applications installed on my machine is called an HRMS application made by Best Software. The HRMS application settings are stored under the Best Software key in the HKLM hive. By running regedit and expanding on the HKEY_LOCAL_MACHINE, then expanding on Software and the Best Software key, the following information is contained in the registery.





Majority of the Microsoft made products are installed under the key Microsoft under Software in HKLM.

For example, if you have the SQL server installed, then you can look up some of the registery entries for it by examining the MSSQLServer key in the Software section in the HKLM hive. On my machine, this looks as:







Using Regedit to modify your Registry

Once you have started the Regedit you will notice that on the left side there is a tree with folders, and on the right the contents (values) of the currently selected folder.

Like Windows explorer, to expand a certain branch (see the structure of the registry section), click on the plus sign [+] to the left of any folder, or just double-click on the folder. To display the contents of a key (folder), just click the desired key, and look at the values listed on the right side. You can add a new key or value by selecting New from the Edit menu, or by right-clicking your mouse. And you can rename any value and almost any key with the same method used to rename files; right-click on an object and click rename, or click on it twice (slowly), or just press F2 on the keyboard. Lastly, you can delete a key or value by clicking on it, and pressing Delete on the keyboard, or by right-clicking on it, and choosing Delete.

Note: it is always a good idea to backup your registry before making any changes to it. It can be intimidating to a new user, and there is always the possibility of changing or deleting a critical setting causing you to have to reinstall the whole operating system. It's much better to be safe than sorry!







Importing and Exporting Registry Settings

A great feature of the Registry Editor is it's ability to import and export registry settings to a text file, this text file, identified by the .REG extension, can then be saved or shared with other people to easily modify local registry settings. You can see the layout of these text files by simply exporting a key to a file and opening it in Notepad, to do this using the Registry Editor select a key, then from the "Registry" menu choose "Export Registry File...", choose a filename and save. If you open this file in notepad you will see a file similar to the example below:


REGEDIT4

[HKEY_LOCAL_MACHINE\SYSTEM\Setup]
"SetupType"=dword:00000000
"CmdLine"="setup -newsetup"
"SystemPrefix"=hex:c5,0b,00,00,00,40,36,02



The layout is quite simple, REGEDIT4 indicated the file type and version, [HKEY_LOCAL_MACHINE\SYSTEM\Setup] indicated the key the values are from, "SetupType"=dword:00000000 are the values themselves the portion after the "=" will vary depending on the type of value they are; DWORD, String or Binary.

So by simply editing this file to make the changes you want, it can then be easily distributed and all that need to be done is to double-click, or choose "Import" from the Registry menu, for the settings to be added to the system Registry.





Example:

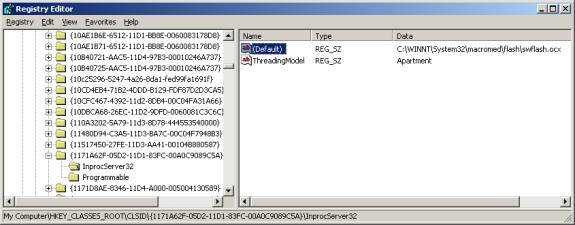

            From the Edit->Find menu in regedit, search for:swflash.ocx (this is the flash ActiveX control). Then click on the corresponding CLSID key as shown below.





Then choose Registery->Export Registery File. Specify a file name of flash.reg in a temp folder. You will see the following contents of the file (you can examine it through notepad).



Windows Registry Editor Version 5.00



[HKEY_CLASSES_ROOT\CLSID\{1171A62F-05D2-11D1-83FC-00A0C9089C5A}]

@="FlashProp Class"



[HKEY_CLASSES_ROOT\CLSID\{1171A62F-05D2-11D1-83FC-00A0C9089C5A}\InprocServer32]

@="C:\\WINNT\\System32\\macromed\\flash\\swflash.ocx"

"ThreadingModel"="Apartment"



[HKEY_CLASSES_ROOT\CLSID\{1171A62F-05D2-11D1-83FC-00A0C9089C5A}\Programmable]





Deleting keys or values using a REG file

It is also possible to delete keys and values using REG files. To delete a key start by using the same format as the REG file above, but place a "-" symbol in front of the key name you want to delete. For example to delete the [HKEY_LOCAL_MACHINE\SYSTEM\Setup] key the reg file would look like this:

REGEDIT4

[-HKEY_LOCAL_MACHINE\SYSTEM\Setup]

The format used to delete individual values is similar, but instead of a minus sign in front of the whole key, place it after the equal sign of the value. For example, to delete the value "SetupType" the file would look like:

REGEDIT4

[HKEY_LOCAL_MACHINE\SYSTEM\Setup]
"SetupType"=-

Use this feature with care, as deleting the wrong key or value could cause major problems within the registry, so remember to always make a backup first.



Regedit Command Line Options

Regedit has a number of command line options to help automate it's use in either batch files or from the command prompt. Listed below are some of the options, please note the some of the functions are operating system specific.

regedit.exe [options] [filename]

filename   Imports .reg file into the registry
/s         Silent, i.e. hide confirmation box when importing files
/e         Export registry file
           e.g. regedit /e file.reg HKEY_USERS\.DEFAULT
/L:system  Specify the location of the system.dat to use
/R:user    Specify the location of the user.dat to use
/C         Compress [filename] (Windows 98)





Maintaining the Registry



Backup and Restore the Registry



Windows 95

Microsoft included a utility on the Windows 95 CD-ROM that lets you create backups of the Registry on your computer. The Microsoft Configuration Backup program, CFGBACK.EXE, can be found in the \Other\Misc\Cfgback directory on the Windows 95 CD-ROM. This utility lets you create up to nine different backup copies of the Registry, which it stores, with the extension RBK, in your \Windows directory. If your system is set up for multiple users, CFGBACK.EXE won't back up the USER.DAT file.

After you have backed up your Registry, you can copy the RBK file onto a floppy disk for safekeeping. However, to restore from a backup, the RBK file must reside in the \Windows directory. Windows 95 stores the backups in compressed form, which you can then restore only by using the CFGBACK.EXE utility.

In the Windows directory there are several hidden files, four of these will be SYSTEM.DAT & USER.DAT, your current registry, and SYSTEM.DA0 & USER.DA0, a backup of your registry. Windows 9x has a nice feature in that every time it appears to start successfully it will copy the registry over these backup files, so just in case something goes wrong you can restore it to a known good state. To restore the registry follow these instruction:

1. Click the Start button, and then click Shut Down.

2. Click Restart The Computer In MS-DOS Mode, then click Yes.

3. Change to your Windows directory. For example, if your Windows directory is c:\windows, you would type the following:

  cd c:\windows

4. Type the following commands, pressing ENTER after each one. (Note that SYSTEM.DA0 and USER.DA0 contain the number zero.)

  attrib -h -r -s system.dat
  attrib -h -r -s system.da0
  copy system.da0 system.dat
  attrib -h -r -s user.dat
  attrib -h -r -s user.da0
  copy user.da0 user.dat

5. Restart your computer.



Following this procedure will restore your registry to its state when you last successfully started your computer.

If all else fails, there is a file on your hard disk named SYSTEM.1ST that was created when Windows 95 was first successfully installed. If necessary you could also change the file attributes of this file from read-only and hidden to archive to copy the file to C:\WINDOWS\SYSTEM.DAT.



Windows 98

Microsoft Windows 98 automatically creates a backup copy of the registry every time Windows starts, in addition to this you can manually create a backup using the Registry Checker utility by running SCANREGW.EXE from Start | Run menu.



What to do if you get a Corrupted Registry
Windows 95, 98 and NT/2000 all have a simple registry backup mechanism that is quite reliable, although you should never simply rely on it, remember to always make a backup first!





Windows NT/2000

On Windows NT/2000 you can use either the "Last Known Good" option or RDISK to restore to registry to a stable working configuration.

Here are the instructions for restoring the Registry from a “Last Known Good” state.

  1. Click Start, and then click Shut Down.
  2. Click Restart, and then click OK.
  3. When you see the message Please select the operating system to start, press F8.
  4. Use the arrow keys to highlight Last Known Good Configuration, and then press ENTER.

NUM LOCK must be off before the arrow keys on the numeric keypad will function.

  1. Use the arrow keys to highlight an operating system, and then press ENTER.

Notes





Cleaning the Registry

Although it's possible to manually go through the Registry and delete unwanted entries, Microsoft provides a tool to automate the process, the program is called RegClean. RegClean analyzes Windows Registry keys stored in a common location in the Windows Registry. It finds keys that contain erroneous values, it removes them from the Windows Registry after having recording those entries in the Undo.Reg file.



Registery Classes in .Net



     .Net provides two main classes for accessing and modifying registry entries. One class is called Registry which has a few static properties that allow you to access different registry hives, the other class is called RegistryKey – which as the name implies is used to create and manipulate registry keys. The RegistryKey class can do most modifications except for the security settings. Both of these classes require the Microsoft.Win32 namespace.



     The RegistryKey class has seven properties named after the seven hives in the registery i.e, ClassesRoot, CurrentConfig, CurrentUser, LocalMachine, Users, DynData, and PerformanceData.



Example: The following code returns a reference to the SQL server key.

     RegistryKey rk = Registry.LocalMashine;

     RegistryKey rkSW = rk.OpenSubKey(“Software”);

     RegistryKey rkSqlserver = rkSw.OpenSubKey(“MSSQLServer”);



     The above technique only gives you a read-only access. If you wanted to modify a key or create subkeys inside it, then you need to open the key with another overridden function (still called OpenSubKey) that takes two parameters. For example the above code will change to as shown below if modifications are intended in the MSSQLServer key.

     RegistryKey rk = Registery. LocalMashine;

     RegistryKey rkSW = rk.OpenSubKey(“Software”);

     RegistryKey rkSqlserver = rkSw.OpenSubKey(“MSSQLServer”, true);



The OpenSubKey method returns null if the key is not present. If your intention is to create a key, then the appropriate method to use is called CreateSubKey( ). This method allows read/write access to the key e.g.,

     RegistryKey rk = Registery. LocalMashine;

     RegistryKey rkSW = rk.OpenSubKey(“Software”,true);

     RegistryKey rkMs = rkSw.CreateSubKey(“MySoft”);



If the MySoft key already exists, then the CreateSubKey( ) method returns a reference to the existing key.



You will rarely write code to delete registry keys. But if that is the intention, then there is the DeleteSubKey( ) method that will do the job. Once again, you have to be very careful in deleting any information in the registry.



Once you have a reference to the key that you would like to modify, you can use the SetValue( ) method (or the GetValue( ) to read a value stored in the key). The SetValue( ) method can decide from the type of second parameter whether the data type stored in the registry will be REG_SZ or REG_DWORD, or REG_BINARY e.g.,



     RegistryKey rk = Registry.LocalMashine;

     RegistryKey rkSW = rk.OpenSubKey(“Software”);

     RegistryKey rkMs = rkSw.CreateSubKey(“MySoft”);

     rkMs.SetValue(“Greeting”,”Welcome to MySoft”);  // treats param as REG_SZ

     rkMs.SetValue(“Version”,2);  // treats 2 as REG_DWORD



When you use the GetValue( ) method to retrieve a value from the registry key, you need to type cast it to an appropriate value as the data is brought back as an object reference e.g.,

     string msg = (string) rkMs.GetValue(“Greeting”);

     int ver = (int)rkMs.GetValue(“version”);



After you are done reading or modifying a key, you should close the key, e.g.,

     rkMs.Close( );





     One of the common uses of the registry is to store the position, size and edit preferences of the user in an application. This way once you restart the application after shutting it down, it appears the same way, the last time you had used it. We will create a simple notepad like word processor and use the registry to store important information such as size, position, and background color etc.. The basic idea in this case is to use the dispose method to store the important information in the registry and the form constructor to read from the registry and set the values.



Example: Creating a simple NotePad like Word Processor. Note that a word processor is simply a text box that occupies the entire client area.

     Create a new windows project. Name the project NotePad. Put a text box in the form with a name of txtNotePad. Set the multi-line property of this text box to true and the scrollbars property to both. The Resize event for the form will make the text box as large as the entire client area. Change the text property of the form to “My NotePad”.

Add a main menu control with the following menus. Name the menus appropriately e.g., the File menu will be named as mnuFile while the New menu under it will be named as mnuFileNew.



File                     Edit              Color

     New                   Copy              Back Color

     Open                   Cut                 Text Color

     ------                   Paste

     Save

     Save As

     ------

     Exit



Add the System.IO namespace to the top of the form. You will need this for the file and stream type of classes.



Add a data member called currentFilename to the form class as shown below.

     public class Form1 : System.Windows.Forms.Form

     {

      string currentFilename ;



The different event handlers for the different menu items are shown below.

      public Form1()

      {

         //

         // Required for Windows Form Designer support

         //

         InitializeComponent();

        currentFilename = "";

   }



      private void Form1_Resize(object sender, System.EventArgs e)

      {

         txtNotePad.Left = 0;

         txtNotePad.Top = 0;

         txtNotePad.Width = ClientRectangle.Width;

         txtNotePad.Height = ClientRectangle.Height;

      }



      private void Form1_Load(object sender, System.EventArgs e)

      {

         Form1_Resize(sender,e);

      }



      private void mnuEditCopy_Click(object sender, System.EventArgs e)

      {

         txtNotePad.Copy();

      }



      private void mnuEditCut_Click(object sender, System.EventArgs e)

      {

         txtNotePad.Cut();

      }



      private void mnuEditPaste_Click(object sender, System.EventArgs e)

      {

         txtNotePad.Paste();

      }



      private void mnuFileOpen_Click(object sender, System.EventArgs e)

      {

         txtNotePad.Text = "";

         currentFilename="";

         OpenFileDialog openfDlg = new OpenFileDialog();

         openfDlg.Filter = "Text Files | *.txt";

         string filename;

         if (openfDlg.ShowDialog() == DialogResult.OK)

         {

            filename = openfDlg.FileName;

            currentFilename = filename;

            FileInfo fi = new FileInfo(filename);

            StreamReader rstr = fi.OpenText();

            string []sline = new string[65535];

               // max lines a text box can hold

            int count = 0;

            if (rstr != null)

            {

               count = 0;

               sline[count++] = rstr.ReadLine();

               while (sline[count-1] != null)

               {

                  sline[count++] = rstr.ReadLine();

                  if (count >= 65536) break;

               }



               rstr.Close();

               string []finalSize = new String[count];

               // find exact size of line array otherwise blank

               // blank lines will show up in editor

               for (int i = 0; i < count; i++)

                  finalSize[i]=sline[i];

               txtNotePad.Lines = finalSize;

            }

         }

      }



      private void mnuFileSaveAs_Click(object sender, System.EventArgs e)

      {

         string filename="";

         SaveFileDialog savefDlg = new SaveFileDialog();

         if (savefDlg.ShowDialog() == DialogResult.OK)

         {

            filename = savefDlg.FileName;

            SaveData(filename);

         }

      }



      private void mnuFileSave_Click(object sender, System.EventArgs e)

      {

         SaveData(currentFilename);

      }



      private void SaveData(string filename)

      {

         StreamWriter wstr = new StreamWriter(

         filename,false,System.Text.Encoding.Unicode);

         foreach(string sline in txtNotePad.Lines)

            wstr.WriteLine(sline);

         wstr.Close();

         txtNotePad.SelectionLength=0;

      }



      private void mnuFileNew_Click(object sender, System.EventArgs e)

      {

         txtNotePad.Text = "";

         currentFilename="";

      }



      private void mnuFileExit_Click(object sender, System.EventArgs e)

      {

         Application.Exit();

      }



      private void Form1_Closing(object sender, System.ComponentModel.CancelEventArgs e)

      {

         mnuFileExit_Click(sender,e);

      }



      private void mnuColorBack_Click(object sender, System.EventArgs e)

      {

         ColorDialog cd = new ColorDialog();

         if (cd.ShowDialog() == DialogResult.OK)

            txtNotePad.BackColor = cd.Color;



      }



      private void mnuColorText_Click(object sender, System.EventArgs e)

      {

         ColorDialog cd = new ColorDialog();

         if (cd.ShowDialog() == DialogResult.OK)

            txtNotePad.ForeColor = cd.Color;

      }



Exercise:

         Build and test the NotePad editor. You will notice some problems such as if you run the application and click on File->Save menu, a run time error is generated. Similarly if you type something and then terminate the application, it does not prompt you to save the data. Try to discover other problems and fix them.



Solution:

The solution to first problem is to disable the Save menu if a file has not been opened yet or to invoke the FileSaveAs menu whenever some clicks on the File->Save and the name of the file is empty.



The solution to the problem of quitting before the user has a chance to save the data can be solved by adding a bool type variable called isDirty in the form as a data member. The constructor of the form will initialize it to false. Then you will write a TextChanged event handler for the txtNotePad which will look as:

   private void txtNotePad_TextChanged(object sender, System.EventArgs e)

   {

        isDirty = true;

  }



You can add another function to the form code which will prompt the user to save the data or not. The code for this function is shown below.

    private void PromptSave()

    {

      string question;

      if (currentFilename == "")

        question = "Save Changes to a File?";

      else

        question = "Save Changes Made in "

         + currentFilename;



      if (MessageBox.Show(question,"Save File?",

        MessageBoxButtons.YesNo) == DialogResult.Yes)

      {

        if (currentFilename == "")

         mnuFileSaveAs_Click(null,null);

        else

         mnuFileSave_Click(null,null);

      }

    }



    private void mnuFileExit_Click(object sender, System.EventArgs e)

    {

      if (isDirty)

        PromptSave();

      Application.Exit();

    }



You will need to add the Form Closing event handler.



    private void Form1_Closing(object sender, System.ComponentModel.CancelEventArgs e)

    {

      mnuFileExit_Click(sender,e);

    }



Add the following lines shown in bold to the beginning of the mnuFileOpen handler.



    private void mnuFileOpen_Click(object sender, System.EventArgs e)

    {

      if (isDirty)

        PromptSave();

      txtNotePad.Text = "";



Add the following lines shown in bold to the beginning of the mnuFileNew handler.

    private void mnuFileNew_Click(object sender, System.EventArgs e)

    {

      if (isDirty)

        PromptSave();

      txtNotePad.Text = "";

      currentFilename="";

    }





Program Modification so that NotePad position, size and back color can be stored and retrieved from Registry



Add the following two methods to the form code.

void SaveSetting()  // saves info in registry

    {

      RegistryKey rk = Registry.LocalMachine;

      RegistryKey rkSw = rk.OpenSubKey("Software",true);

      RegistryKey rkAm = rkSw.CreateSubKey("AusifM Software");

      RegistryKey rkFr = rkAm.CreateSubKey("NotePadFrame");

      rkFr.SetValue("BackColor",(object)this.txtNotePad.BackColor.ToKnownColor());

      rkFr.SetValue("Red",(object)(int)this.txtNotePad.BackColor.R);

      rkFr.SetValue("Green",(object)(int)this.txtNotePad.BackColor.G);

      rkFr.SetValue("Blue",(object)(int)this.txtNotePad.BackColor.B);



      rkFr.SetValue("Width",(object)this.Width);

      rkFr.SetValue("Height",(object)this.Height);

      rkFr.SetValue("X",(object)this.DesktopLocation.X);

      rkFr.SetValue("Y",(object)this.DesktopLocation.Y);

      rkFr.SetValue("WindowState",(object)this.WindowState.ToString());

      rkFr.Close();

    }



    bool GetSetting()  // Retrieves info in registry

    {

      RegistryKey rk = Registry.LocalMachine;

      RegistryKey rkSw = rk.OpenSubKey("Software");

      RegistryKey rkAm = rkSw.OpenSubKey("AusifM Software");

      if (rkAm == null)

        return false;

      RegistryKey rkFr = rkAm.OpenSubKey("NotePadFrame");

      if (rkFr == null)

        return false;

      int red = (int)rkFr.GetValue("Red");

      int green = (int)rkFr.GetValue("Green");

      int blue = (int)rkFr.GetValue("Blue");

      this.txtNotePad.BackColor = Color.FromArgb(red,green,blue);



      int x = (int)rkFr.GetValue("X");

      int y = (int)rkFr.GetValue("Y");

      this.DesktopLocation = new Point(x,y);

      this.Width = (int)rkFr.GetValue("Width");

      this.Height = (int)rkFr.GetValue("Height");



      string wndState = (string)rkFr.GetValue("WindowState");

      this.WindowState = (FormWindowState)

        FormWindowState.Parse(WindowState.GetType(),wndState);



      rkFr.Close();

      return true;

    }



Add the Microsoft.Win32 namespace in the beginning of the form code.

using Microsoft.Win32; // for registery classes



Modify the constructor and the dispose method to look as:

    public Form1()

    {

      InitializeComponent();

      currentFilename = "";

      isDirty = false;

      if (GetSetting() == false)

        MessageBox.Show("No info in Registery");

      else

        this.StartPosition = FormStartPosition.Manual;

    }



    protected override void Dispose( bool disposing )

    {

      if( disposing )

      {

        if (components != null)

        {

           components.Dispose();

        }

      }

      SaveSetting();

      base.Dispose( disposing );

    }



Build and test the application. Examine the registry entries to see how the entries for your NotePad look like.
